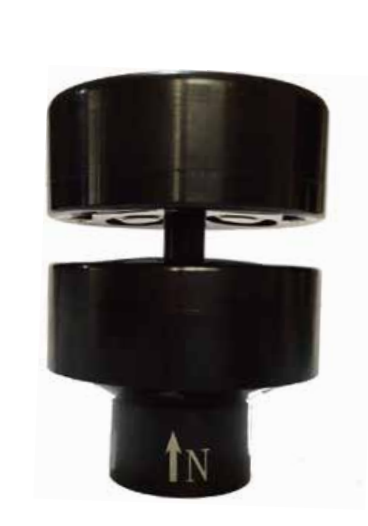

SA-210 Portable Ultrasonic Wind Sensor
Product introduction
SA-210 series ultrasonic wind sensor is an innovative product independently developed by Hunan Saineng Environmental Protection Technology Co., Ltd. and patented in 2008. The SA-210 adopts a patented reflective mechanism design, combined with high-performance DSP digital signal processing detection technology to achieve high-precision wind speed and direction measurement. The complete solid state design and implementation meet the requirements of high reliability and maintenance free. Internal reliable circuit lightning protection treatment can effectively resist frequent lightning strikes in the wind farm and ensure the normal operation of the wind turbine. SA-210 series ultrasonic wind sensor includes SA-210B and SA-210C (with heating) models to meet the needs of different field application environments.
Classic Applications
Wind demand for various solar power supply applications
Application of anemometer tower
Application of smart grid security detection
Application of disaster prevention and early warning safety monitoring
Handheld wind measurement application
Classic Applications
Using reflective ultrasonic measurement technology
Good consistency and high measurement accuracy
Low power consumption, battery powered portable, compact and easy to install
Measurement accuracy: measurement resolution:
technical data
| wind speed（SA-210B/ SA-210C） | |
| Measuring range： | 0 ... 40m/s |
| Measurement accuracy度： | ±0.5m/s(0 ...10m/s)、±5％(>10m/s) |
| Measurement resolution: | 0.1m/s |
| wind direction（SA-210B/ SA-210C） | |
| measuring range： | 0 ... 359.9°（No dead angle） |
| Measurement accuracy： | ±3° |
| Measurement resolution： | 0.1° |
| work environment | |
| working temperature： | -20℃...50℃（SA-210B） -40℃...60℃（SA-210C with heating) |
| Storage temperature： | -40℃...70℃ （SA-210B） -40℃...70℃ （SA-210C with heating) |
| Operating humidity： | Operating humidity |
| Degree of protection： | IP65 |
| power supply | |
| communication interface： | RS485 or RS232 |
| Supply voltage： | 7...9 VDC（SA-210B/C） |
| Heating voltage： | 4 VDC （SA-210C） |
| Power supply current： | 20 mA（SA-210B/C） |
| Heating current： | 1.0 A (SA-210C） |
| heating power： | 20 W (SA-210C） |
| General parameters | |
| Shell material： | Aluminum alloy (surface anodized) |
| Overall dimensions： | 外形尺寸 64×64×68mm |
| weight： | 500g |
| install: | Bottom bolt fixation |
| Interface Type: | 5-pin waterproof plug-in self-locking connector |
| Cable length: | 7m (5-core cable) |
| response characteristic | |
| Start time | <5s |
| Read rate | 1s |
| Signal processing time | <0.1s |
| response time | 1s |
