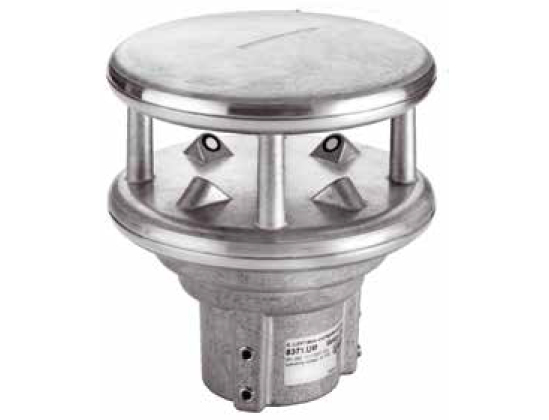

VENTUS-UMB (8371. UMT) anemometer imported from Germany
Product introduction
For high-precision measurement of wind speed and direction and virtual temperature calculation, compared with the traditional measurement method, ultrasonic measurement technology does not use any mechanical components to achieve maintenance free measurement. Digital and analog data output, according to the preset monitoring frequency, provides a variety of measurement data including real-time, mathematical average, vector average and maximum and minimum values. When the external air temperature drops to the critical temperature, the sensor can automatically heat up as required. So as to ensure its reliable operation under cold conditions.
VENTUS-UMB (8371. UMT) is applicable to wind turbines, ships/ships, meteorological fields and building automation.
Support multiple output communication protocols: NMEA, UMB-ASCII, UMB Binary, MODBUS (ASCII, RTU), SDI-12, 4.. 20mA, 0... 10V, 0...
20mA, 2... 10V, Frequency (analog).
| technical data | |
| size | Diameter: about 150mm, height: about 170mm |
| weight | About 1.62kg |
| working temperature | -40... 60 ° C (heating) -20... 60 ° C (without heating) |
| Heating state | 24 VDC largest 240 VA (140W+100W) |
| Bus operation | Up to 32 units |
| Power Supply | 24 VDC ± 10% or 24 VDC/1, 2 VA 12 VDC (without heating) |
| connection | 8-hole bus |
| Housing material | Aluminum, seawater resistant |
| Degree of protection | IP66 |
| column diameter | 50mm |
| Certificate of Origin | have |
| wind direction | |
| principle | ultrasonic |
| range | 0 ... 359.9 ° |
| accuracy | Root mean square error ± 2 ° (>1.0 m/s) |
| resolving power | 0.1 ° |
| wind speed | |
| measuring principle | ultrasonic |
| measuring range | 0 ... 75 m/s |
| accuracy | ± 0.2 m/s or root mean square ± 2% |
| resolving power | 0.1 m/s |
| Virtual temperature | |
| Primary surveying principle | ultrasonic |
| measuring range | - 50 ... 70 °C |
| Measurement rate | 60 local measurements/15 measurements per second |
| accuracy | ± 2.0 ° C (no heating, no exposure to sunlight, wind speed<4m/s) |
| resolving power | 0.1 °C |
| pressure | |
| measuring principle | MEMS capacitor |
| measuring range | 300 ... 1200 hPa |
| accuracy | ±1.5hPa |
| relative humidity | |
| principle | Capacitive type |
| measuring range | 0 ... 100%RH |
| accuracy | ±2%RH |
